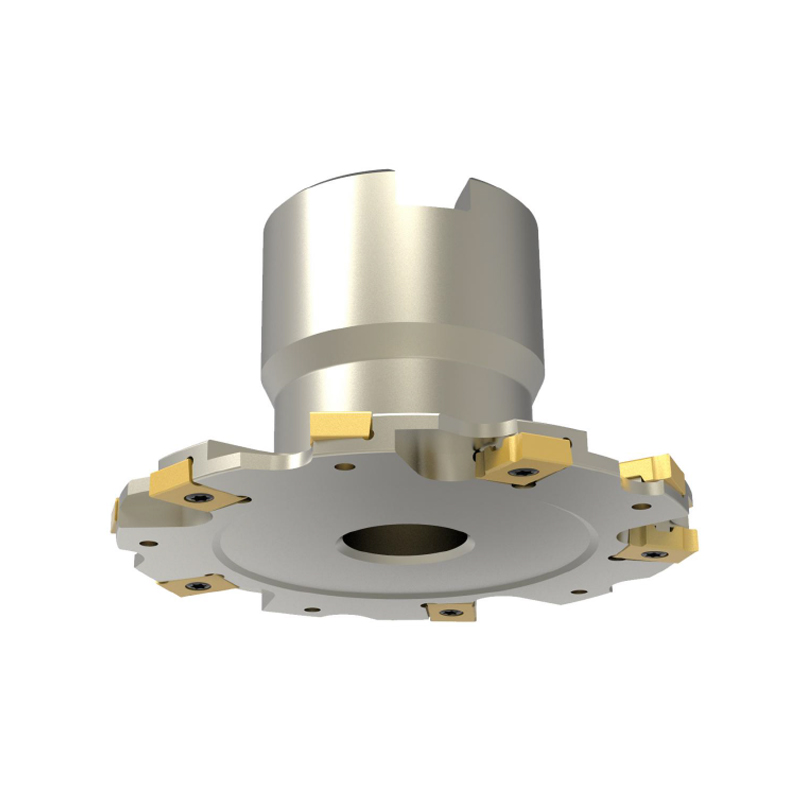

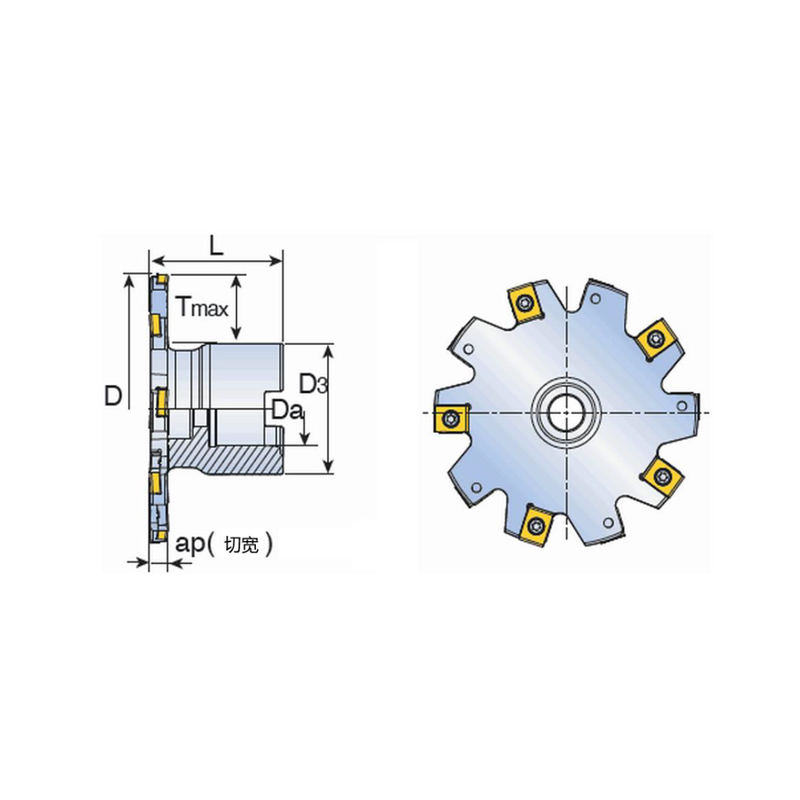

ZN VERTIKÁLNE 3-STRANNÉ VKLADACIE ČEPEĽOVÉ FRÉZY SÉRIE: Fréza CSMZN…R

MODEL

ap

(mm)

ROZMER MM

CONNE

CTOR

kg

VLOŽKY

D

Da

D3

L

Tmax

CSMZN-880W07A22R-038

4 4

7

80

22

40

50

20.0

A

0.5

ZNHT 038

CSMZN-10100W07A27R-038

5 5

7

100

27

48

50

25.5

A

0.7

CSMZN-12125W07B40R-038

6 6

7

125

40

70

50

24.5

B

1.2

CSMZN-16160W07B40R-038

8 8

7

160

40

70

50

42.0

B

1.5

CSMZN-880W08A22R-043

4 4

8

80

22

40

50

20.0

A

0.5

ZNHT 043

CSMZN-10100W08A27R-043

5 5

8

100

27

48

50

25.5

A

0.8

CSMZN-12125W08B40R-043

6 6

8

125

40

70

50

24.5

B

1.2

CSMZN-16160W08B40R-043

8 8

8

160

40

70

50

42.0

B

1.6

CSMZN-10100W09A27R-048

5 5

9

100

27

48

50

26.0

A

0.8

ZNHT 048

CSMZN-12125W09B40R-048

6 6

9

125

40

70

50

24.5

B

1.3

CSMZN-16160W09B40R-048

8 8

9

160

40

70

50

42.0

B

1.7

CSMZN-10100W10A27R-053

5 5

10

100

27

48

50

26.0

A

0.8

ZNHT 053

CSMZN-12125W10B40R-053

6 6

10

125

40

70

50

24.5

B

1.4

CSMZN-16160W10B40R-053

8 8

10

160

40

70

50

42.0

B

1.9

CSMZN-8100W11A27R-058

4 4

11

100

27

48

50

26.0

A

0.8

ZNHT 058

CSMZN-10125W11B40R-058

5 5

11

125

40

70

50

24.5

B

1.4

CSMZN-14160W11B40R-058

7 7

11

160

40

70

50

42.0

B

1.9

CSMZN-8100W12A27R-063

4 4

12

100

27

48

50

26.0

A

0.8

ZNHT 063

CSMZN-10125W12B40R-063

5 5

12

125

40

70

50

24.5

B

1.4

CSMZN-14160W12B40R-063

7 7

12

160

40

70

50

42.0

B

1.9

CSMZN-8100W13A27R-068

4 4

13

100

27

48

50

26.0

A

0.8

ZNHT 068

CSMZN-10125W13B40R-068

5 5

13

125

40

70

50

24.5

B

1.4

CSMZN-14160W13B40R-068

7 7

13

160

40

70

50

42.0

B

1.9

CSMZN-8100W14A27R-073

4 4

14

100

27

48

50

26.0

A

0.8

ZNHT 073

CSMZN-10125W14B40R-073

5 5

14

125

40

70

50

24.5

B

1.4

CSMZN-14160W14B40R-073

7 7

14

160

40

70

50

42.0

B

1.9
