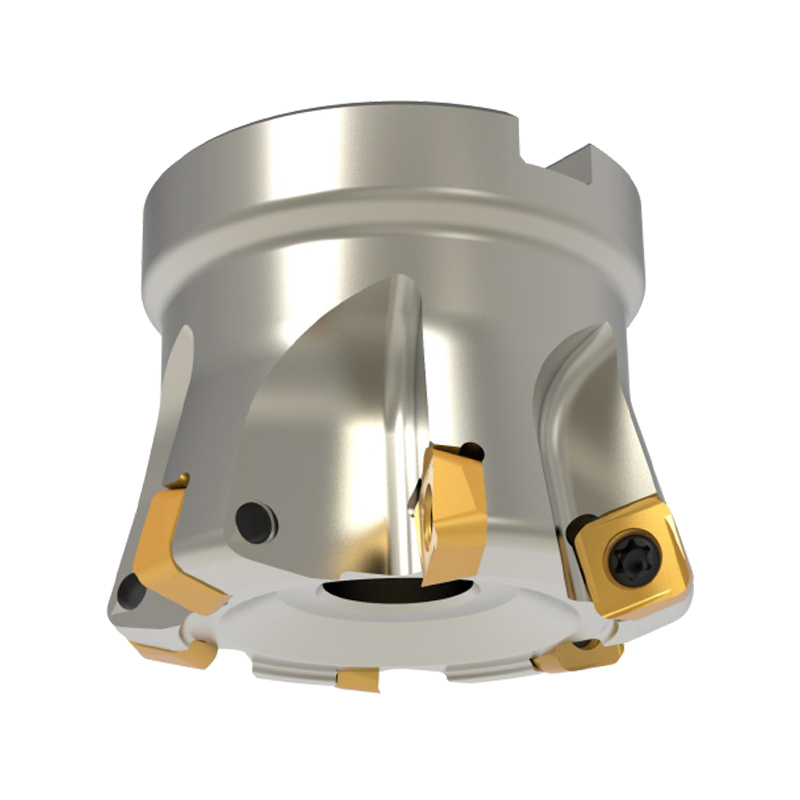

SÉRIA s vysokým posuvom: Čelná fréza CFMSX-13

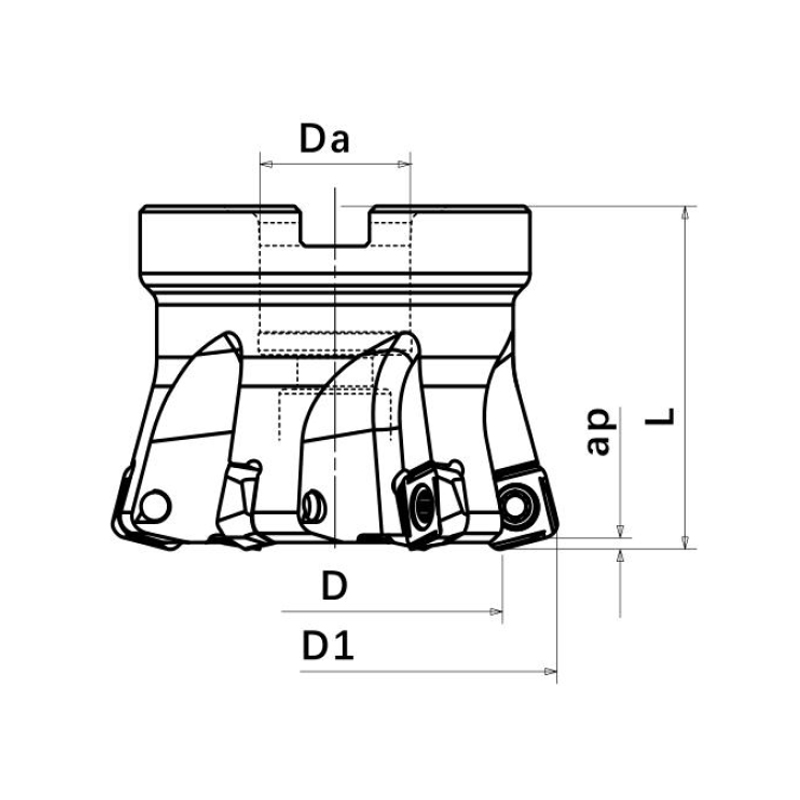

MODEL

DIMENSION

CONNE

CTOR

kg

VLOŽIŤ

D1

D

L

ap

Da

CFMSX-350A22R-13

3

50

29.3

40

2

22

A

0.3

SXMT 1306

CFMSX-450A22R-13

4

50

29.3

40

2

22

A

0.4

CFMSX-452A22R-13

4

52

31.3

40

2

22

A

0.3

CFMSX-552A22R-13

5

52

31.3

40

2

22

A

0.2

CFMSX-463A22R-13

4

63

42.4

50

2

22

A

0.6

CFMSX-563A22R-13

5

63

42.4

50

2

22

A

0.5

CFMSX-463A27R-13

4

63

42.4

50

2

27

A

0.5

CFMSX-566A27R-13

5

66

45.3

50

2

27

A

0.6

CFMSX-580A27R-13

5

80

59.4

60

2

27

A

1.3

CFMSX-680A27R-13

6

80

59.4

60

2

27

A

1.3

CFMSX-580B32R-13

5

80

59.4

60

2

32

A

1.3

CFMSX-6100B32R-13

6

100

79.4

60

2

32

B

1.9

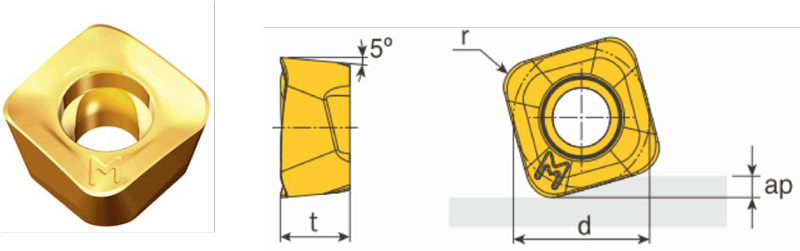

MODEL

MODEL

DIMENSION

STUPEŇ

d

t

ap

r

CT5320

CT5420

CT7320

CT7420

SXMT 130625-M

13

13. 05

6. 65

2.0

2.5

•

•

•

•

MODEL

SKRUTKA

KĽÚČ

CFMSX-13

CSG5012-P

CTS20W-P
