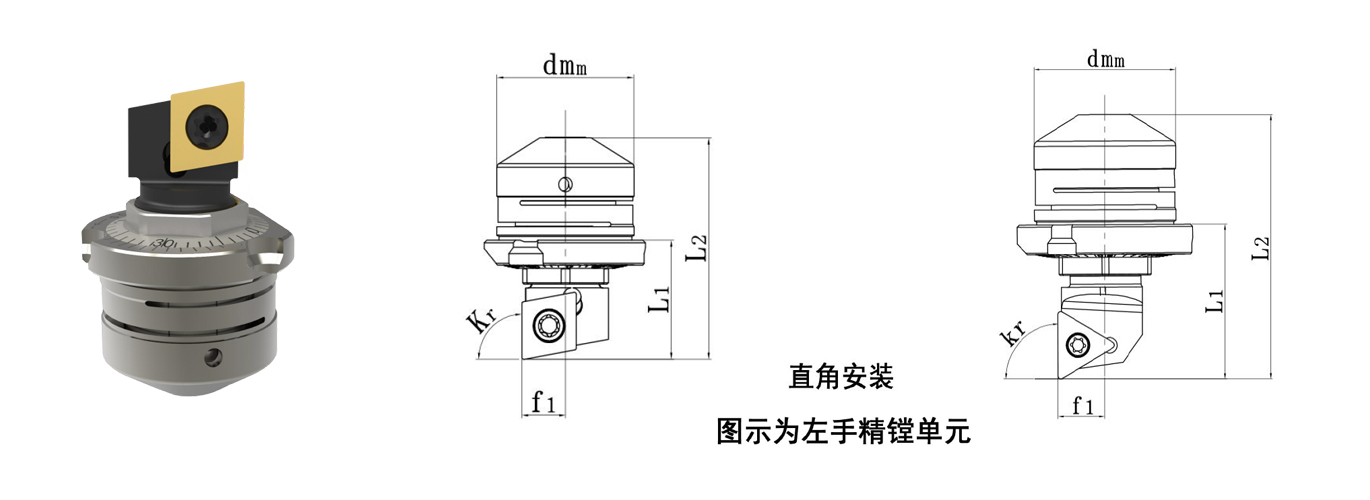

Nástroje na jemné vyvrtávanie R/LCR

MODEL VÝROBKU

L/R

typ inštalácie

ROZMERY

VLOŽIŤ

Kr

dmm

LI

L2

fl

Vypustiť

入

RCR-11-CC06

SPRÁVNY

Pravoúhlá inštalácia

90°

16

13.3

24. 1

5. 1

27

-3°

CC- •••0602

RCR-12-TC09

20

18.3

32.9

6.3

36.5

0°

TC- •••0902

RCR-12-TP09

20

18.3

32.9

6.3

36.5

0°

TP- •••0902

RCR-13-TC11

22

22. 1

44.3

7.2

48.5

0°

TC- •••1102

RCR-13-TP11

22

22. 1

44.3

7.2

48.5

0°

TP- •••1103

RCR-14-TC16

32

32.0

62.7

10.3

68.4

0°

TC- •••16T3

RCR-14-TP16

32

32.0

62.7

10.3

68.4

0°

TP- •••16T3

LCR-11-CC06

LEFT

16

13.3

24. 1

5. 1

27

-3°

CC- •••0602

LCR-12-TC09

20

18.3

32.9

6.3

36.5

0°

TO- •••0902

LCR-12-TP09

20

18.3

32.9

6.3

36.5

0°

TP- •••0902

LCR-13-TC11

22

22. 1

44.3

7.2

48.5

0°

TO- •••1102

LCR-13-TP11

22

22. 1

44.3

7.2

48.5

0°

TP- •••1103

LCR-14-TC16

32

32.0

62.7

10.3

68.4

0°

TO- •••16T3

LCR-14-TP16

32

32.0

62.7

10.3

68.4

0°

TP- •••16T3

VLOŽKY MODEL

SKRUTKA

KĽÚČ

zamykanie

KĽÚČ

CC-…0602

CSC2560

CTS08W

CSC3080

CTS10W

TC-…06T1

CSS2005

CTS06W

CSC3080

CTS10W

TC-…0902

CSC2250

CTS07W

CSC3080

CTS10W

TP-…0902

CSC2560

CTS08W

CSC3080

CTS10W

TC-…1102

CSC2560

CTS08W

CSC4090

CTS15W

TP-…1103

CSC3080

CTS10W

CSC4090

CTS15W

TC-…16T3

CSC4090

CTS15W

CSC5012

CTS20W

TP-…16T3

CSC4090

CTS15W

CSC5012

CTS20W

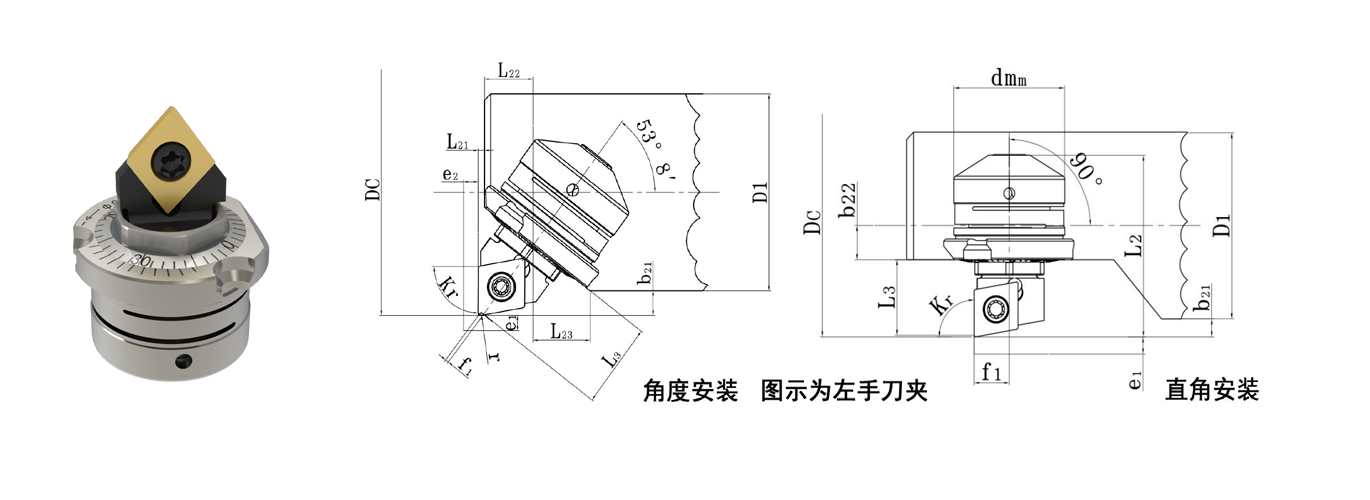

INSTA

LL

VLOŽIŤ

ROZMERY

r

D1 min

Dc min

b21

el max

e2 max

b22

L3 min

L21

L22

L23

fl

Kr=

90.

C/T …06

0.2

26

27.9

0.6

2.5

—

3.6

9.8

—

—

—

5.1

0.4

27.6

0,55

9.6

0.8

27.0

0.5

9.1

T …0902

0.2

34.5

37.4

1.45

3.5

—

4. 55

13. 95

—

—

—

6.3

0.4

37. 1

1.3

13.6

0.8

36.5

1.0

12.9

T…11

0.2

46.5

49.4

1.45

6

—

7. 75

16. 75

—

—

—

7.2

0.4

49. 1

1.3

16.4

0.8

48.5

1.0

15.7

T …16T3

0.4

67

69.6

1.3

10

—

9.4

25.0

—

—

—

10.3

0.8

69.0

1.0

24.3

1.2

68.4

0.7

23.6

Kr=

90.

C-0602

0.2

22

26.2

1.7

2

1.5

—

11.0

0.5

6.6

9. 55

0.4

0.4

25.9

1.65

10.7

0.4

0.8

25.3

1.6

10. 1

0.45

T …06T1

0.2

22

25.7

1.5

2

1.5

—

10.9

0.5

6.6

9. 55

0.4

0.4

25.4

1.45

10.6

0.4

0.8

24.8

1.4

10.0

0.45

T …0902

0.2

28.5

33.4

2. 45

2.8

2.1

—

14.9

0.5

9.4

12.15

0,95

0.4

33. 1

2.3

14.5

1.0

0.8

32.5

2.0

13.7

1.1

T…11

0.2

38

42.9

2. 45

4.8

3.6

—

17.6

0.5

11.2

14.85

1. 15

0.4

42.6

2.3

17.2

1.2

0.8

42.0

2.0

16.4

1.3

T …16T3

0.4

55

60.6

2.8

8

6

—

26.2

0.5

16.65

23.7

1.3

0.8

60.0

2.5

25.4

1.4

1.2

59.4

2.2

24.6

1.5
