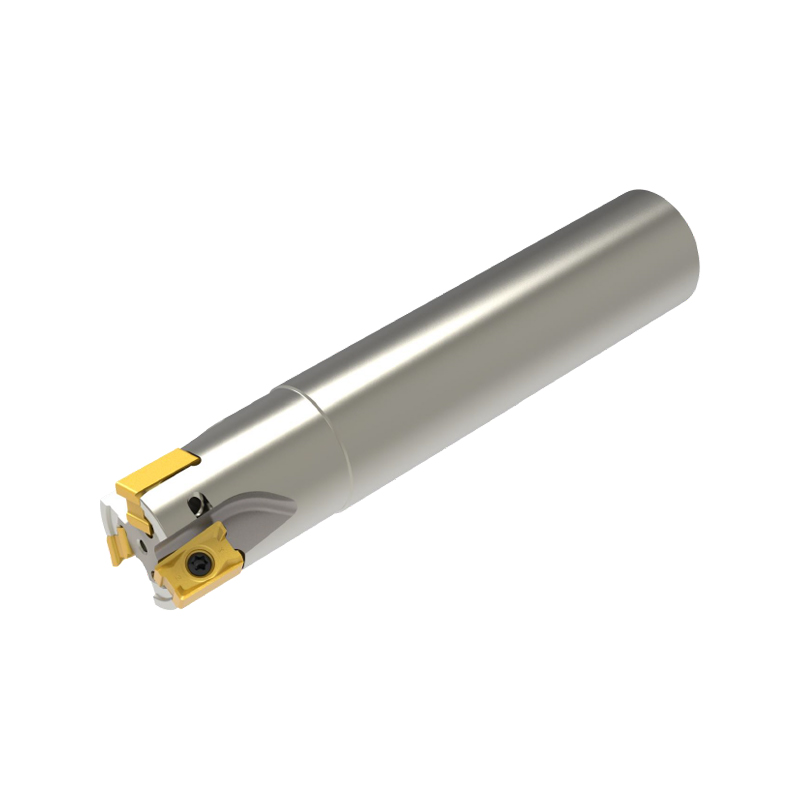

ANSERIES：CE90AN-Y Stopková fréza

MODEL

KR

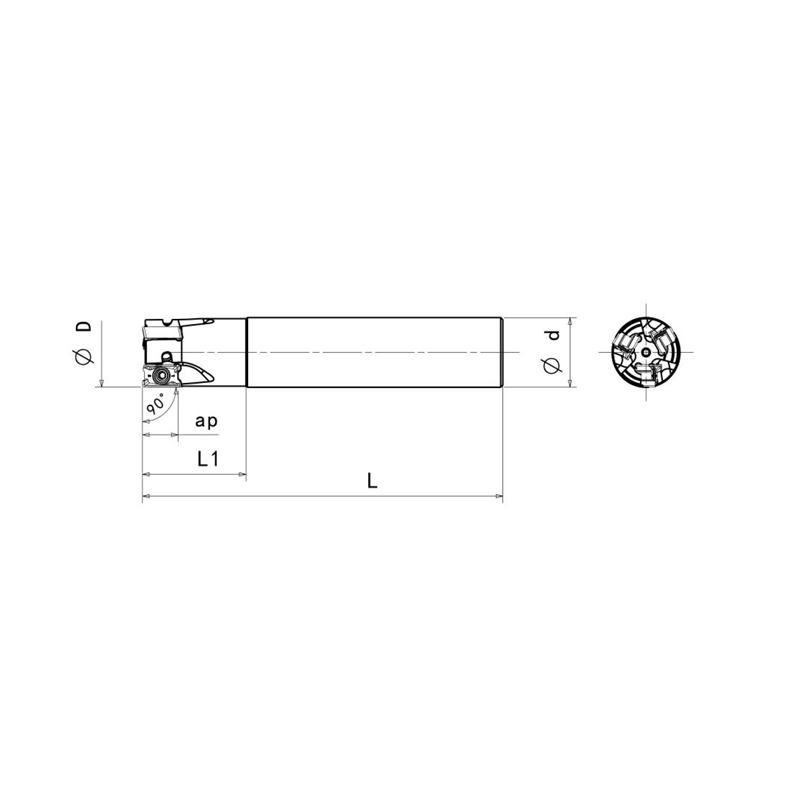

DIMENSION

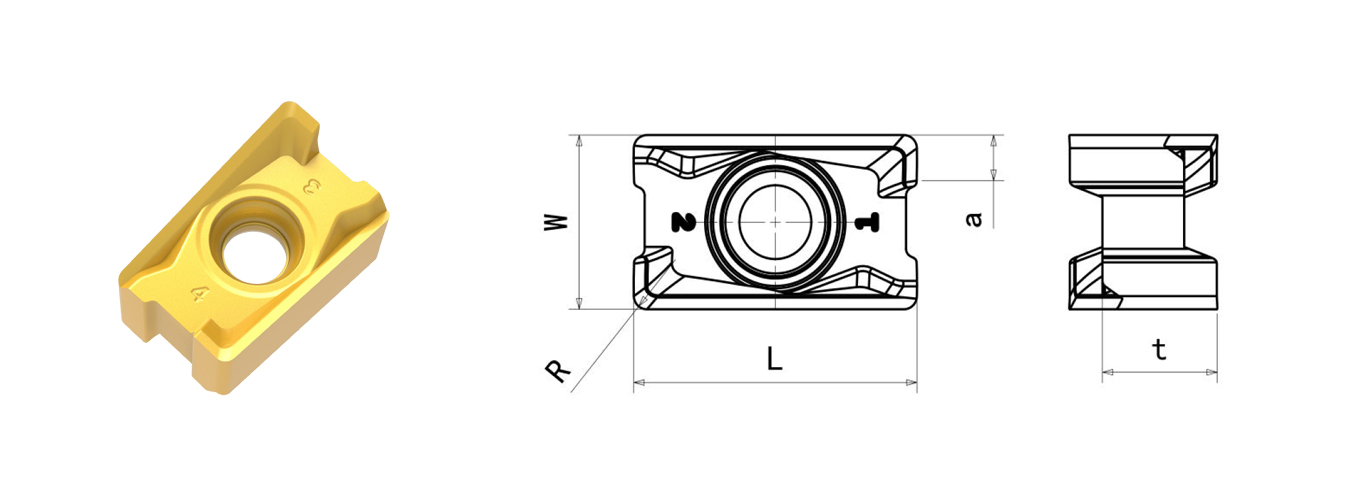

VHODNÁ VLOŽKA

D

d

L

LI

ap

CE90AN-220L150Y20R-12

90°

2

20

20

150

28

11.5

0,33

ANKU 1204

CE90AN-320L90Y20R-12

3

20

20

90

28

0.21

CE90AN-320L150Y20R-12

3

20

20

150

28

0,33

CE90AN-325L170Y25R-12

3

25

25

170

43

0,63

CE90AN-425L100Y25R-12

4

25

25

100

43

0,33

CE90AN-425L170Y25R-12

4

25

25

170

43

0,59

CE90AN-432L200Y32R-12

4

32

32

200

49

1.16

CE90AN-532L110Y32R-12

5

32

32

110

49

0.61

CE90AN-532L200Y32R-12

5

32

32

200

49

1.17

CE90AN-540L200Y32R-12

5

40

32

200

49

1.22

CE90AN-225L100Y25R-17

2

25

25

100

43

16.5

0,28

ANKU 17T6 ANHU 17T6

CE90AN-225L170Y25R-17

2

25

25

170

43

0,58

CE90AN-332L110Y32R-17

3

32

32

110

49

0,58

CE90AN-332L200Y32R-17

3

32

32

200

50

1.14

CE90AN-432L110Y32R-17

4

32

32

110

49

0,58

CE90AN-432L200Y32R-17

4

32

32

200

50

1.14

CE90AN-340L200Y32R-17

3

40

32

200

50

1.21

CE90AN-440L200Y32R-17

4

40

32

200

50

1.20
